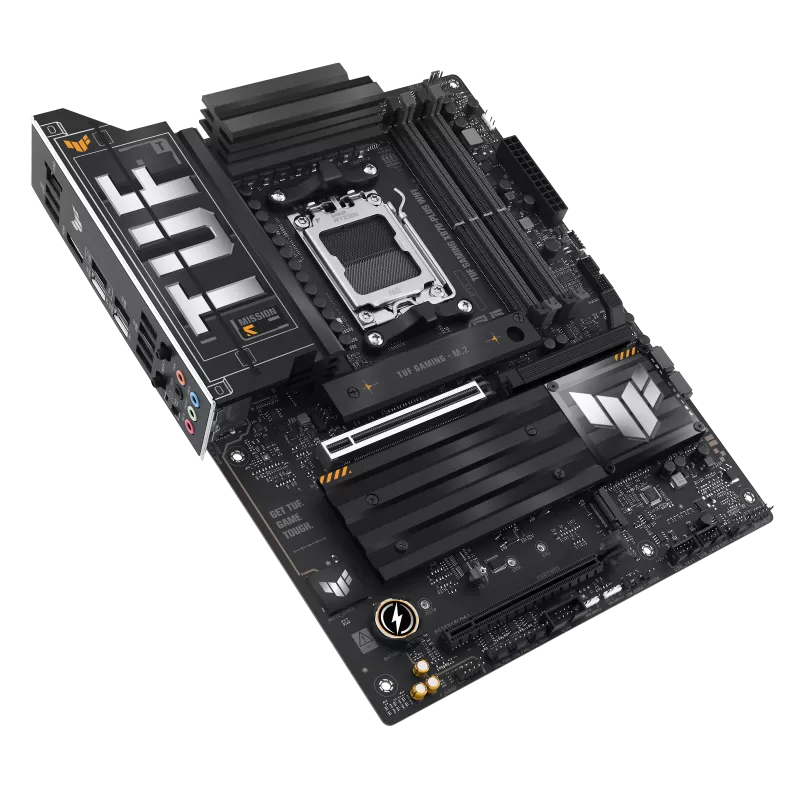

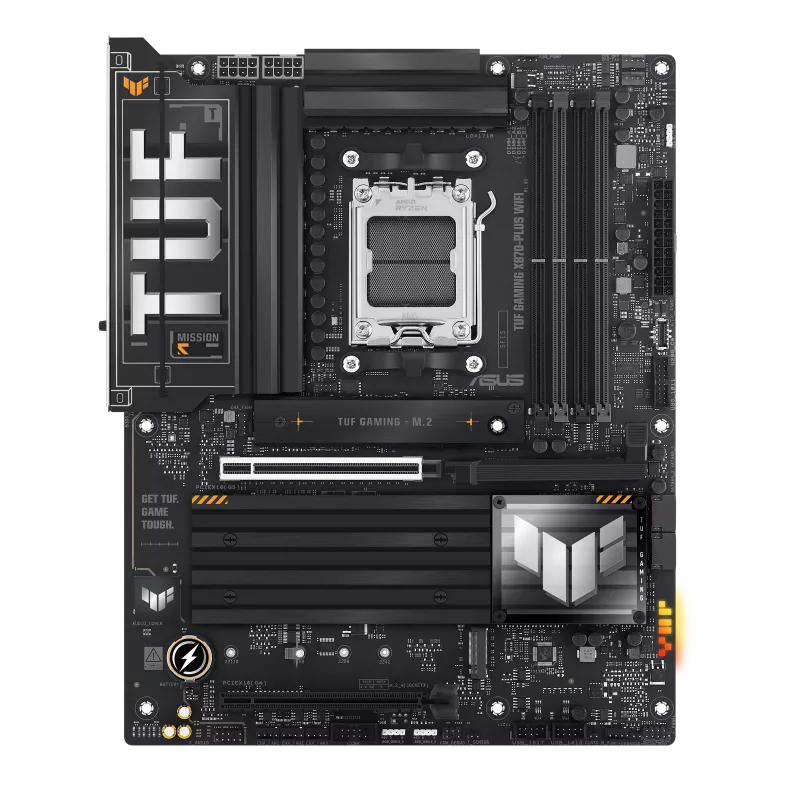

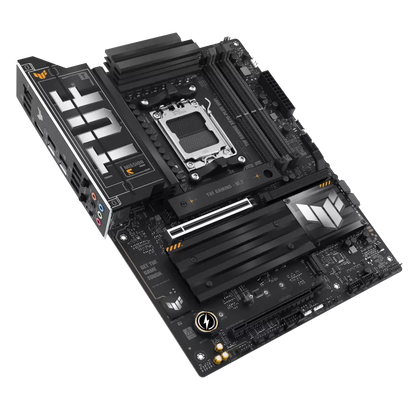

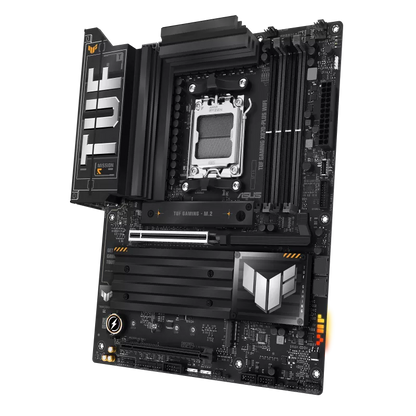

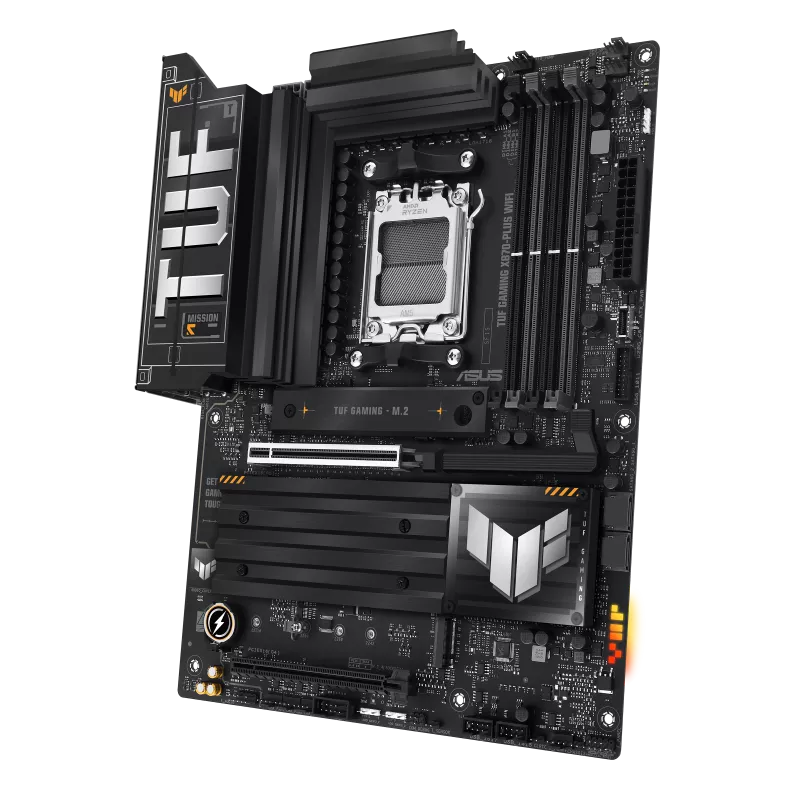

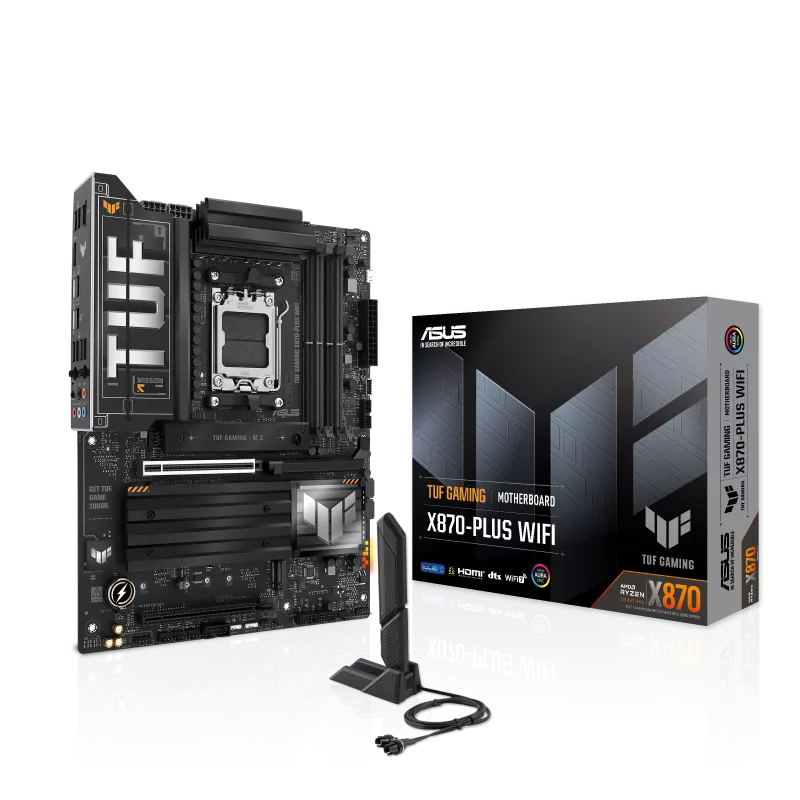

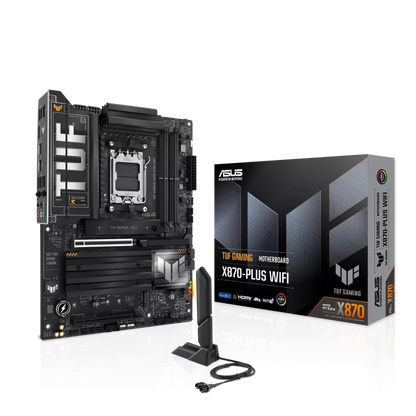

ASUS TUF GAMING X870 PLUS WIFI7

AMD Socket AM5 for AMD Ryzen^™ 9000 & 8000 & 7000 Series Desktop Processors*
* Refer to https://www.asus.com/support/download-center/ for CPU support list.

AMD X870 Chipset

4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s(OC) with Ryzen^™ 9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO^™)
ASUS Enhanced Memory Profile (AEMP)
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

1 x HDMI^™ port**
2 x USB4^® (40Gbps) ports support USB Type-C^® display outputs***
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
**** VGA resolution support depends on processors' or graphic cards' resolution.

AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)***
AMD X870 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)****
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** Specifications vary by CPU types.
**** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports*
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not support
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
2 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.

1 x Realtek 2.5Gb Ethernet
TUF LANGuard

Wi-Fi 7*
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band**
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth^® v5.4***
*Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
*** The Bluetooth^® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

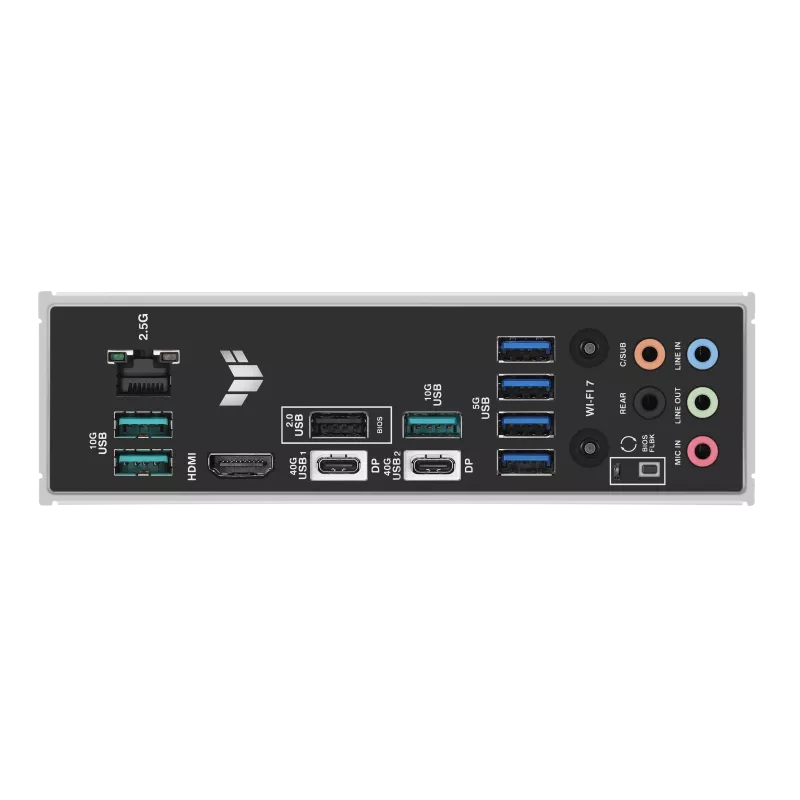

Rear USB (Total 10 ports)
2 x USB4^® (40Gbps) ports (2 x USB Type-C^®)*
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C^® with up to 30W PD Fast-charge)**
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
* USB Type-C^® power delivery output: max. 5V/3A
** USB Type-C^® power delivery output: 5V/9V max. 3A, 12V max. 2.5A, 15V max. 2A.
